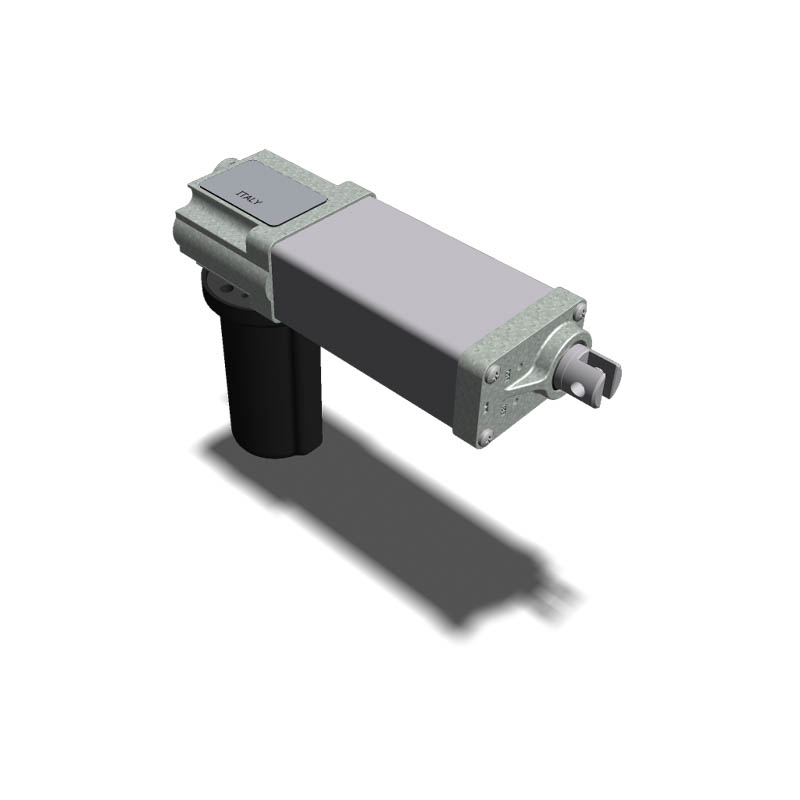

DC Electric Linear Actuator - ALI 1

MecVel Electric Linear Actuator

DC Electric Linear Actuator for forces up to 1200N

    -Powered by DC motor
    -Permanent magnet motor 12-24 Vdc
    -Double worm gearbox
    -Aluminum push rod (stainless steel on request)
    -Permanent grease lubrication
    -IP 65, tested according to rule CEI EN 60529
    -Working temperature range -10deg C
    -Intermittent duty S3 30% (5 min) a 30deg C
    -Encoder and/or limit switches on request
    -Maximum Force: 1200 N
    -Maximum speed: 90 mm/s
MecVel Electric Linear Actuator
