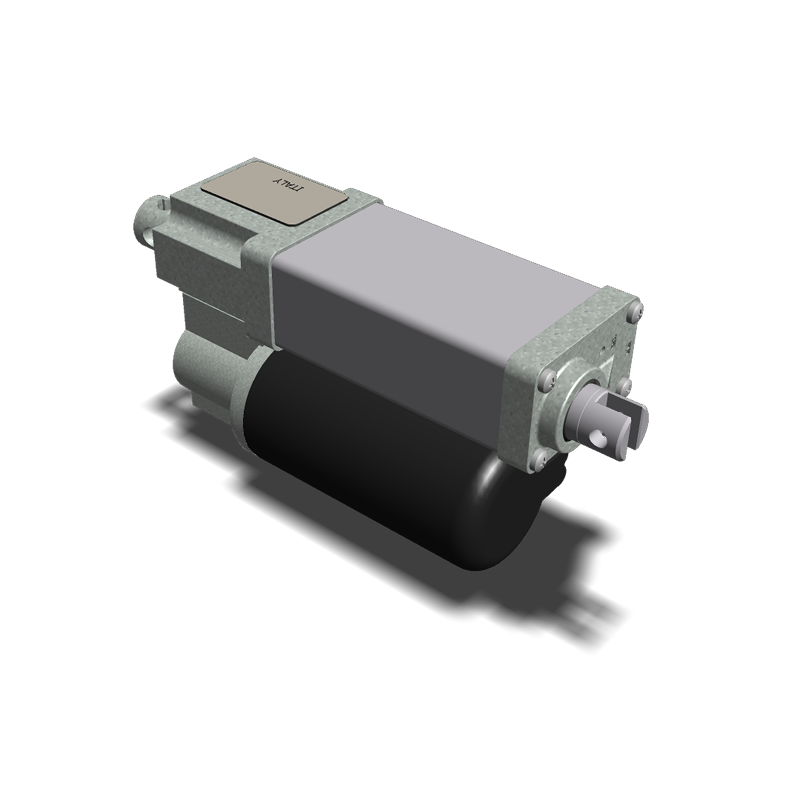

DC Electric Linear Actuator - ALI 1-P

MecVel Electric Linear Actuator

DC Electric Linear Actuator for forces up to 2500N

    -Permanent magnet motor 12-24 Vdc
    -Double worm gearbox
    -ACME lead screw
    -Aluminum push rod (stainless steel on request)
    -Permanent grease lubrication
    -IP 65, tested according to rule CEI EN 60529
    -Working temperature range -10degC to 60degC
    -Intermittent duty S3 30% (5 min) at 30degC
    -Encoder and/or limit swtiches on request
    -Maximum force: 2500N
    -Maximum speed: 16.5 mm/s
