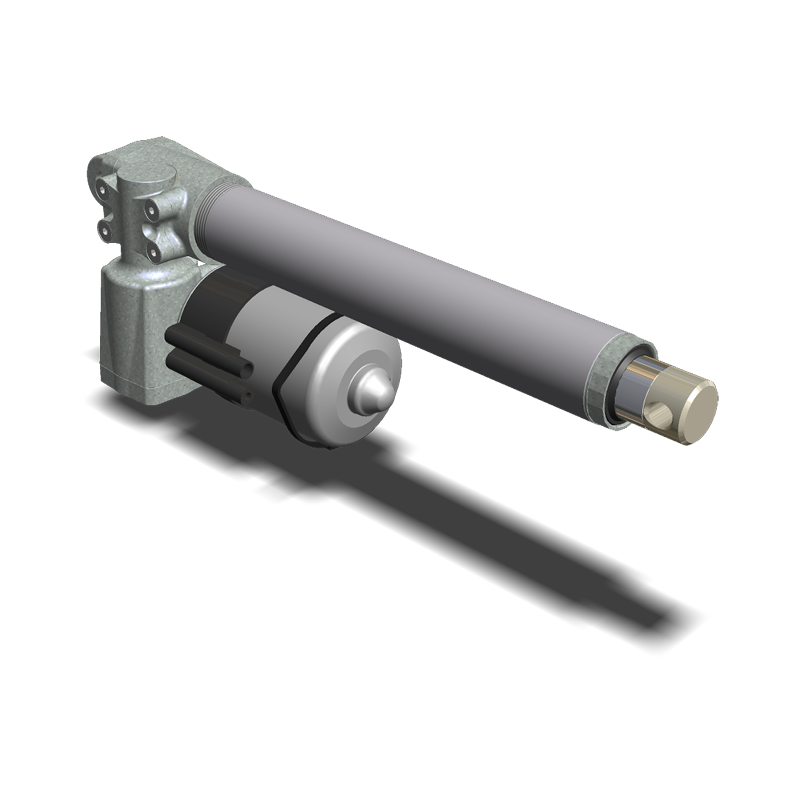

DC Electric Linear Actuator - ALI 2-P
DC Electric Linear Actuator for forces up to 4200N
- -Permanent magnet motor
- -Double worm gearbox
- -ACME lead screw
- -Chrome plated steel push rod
- -Permanent grease lubrication
- -IP 65, tested according to rule CEI EN 60529
- -Working temperature range -10degC to 60degC
- -Intermittent duty S3 30% (5 min) at 30degC
- -Limit switches, potentiometer, and encoder on request
- -Maximum force: 4200N
- -Maximum speed: 30 mm/s
