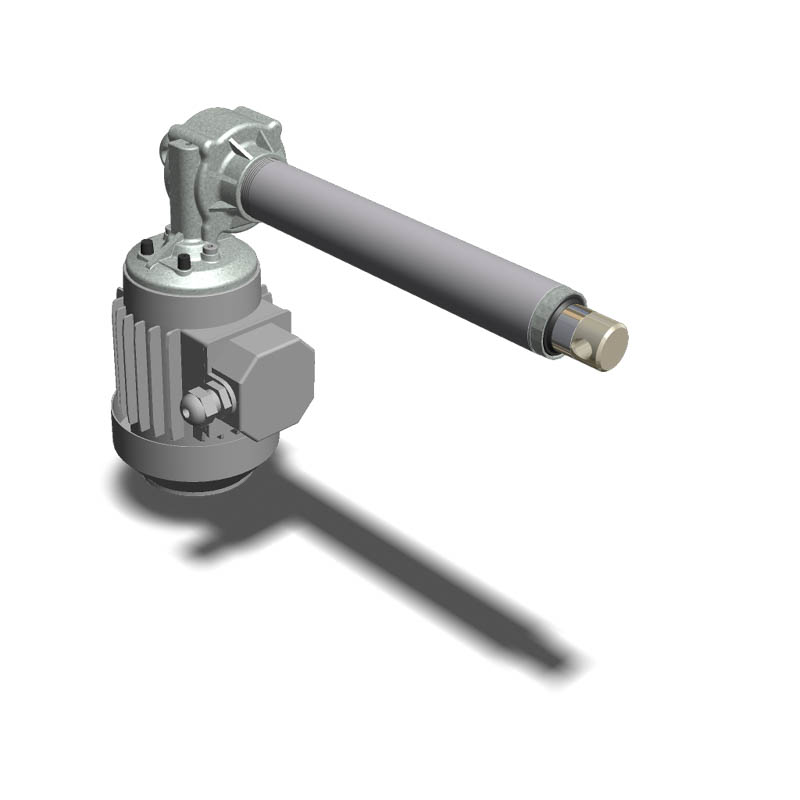

AC Electric Linear Actuator - ALI 3
AC Electric Linear Actuator for forces up to 6000N
- -Three phase or single phase motor
- -Worm gearbox
- -ACME lead screw or ballscrew (VRS)
- -Chrome plated steel push rod
- -Permanent grease lubrication
- -IP 65, tested according to rule CEI EN 60529
- -Working temperature range -10degC to 60degC
- -Intermittent duty S3 30% (5 min) at 30degC
- -Limit switches, potentiometer, and encoder on request
- -Maximum force: 6000N
- -Maximum speed: 35 mm/s
