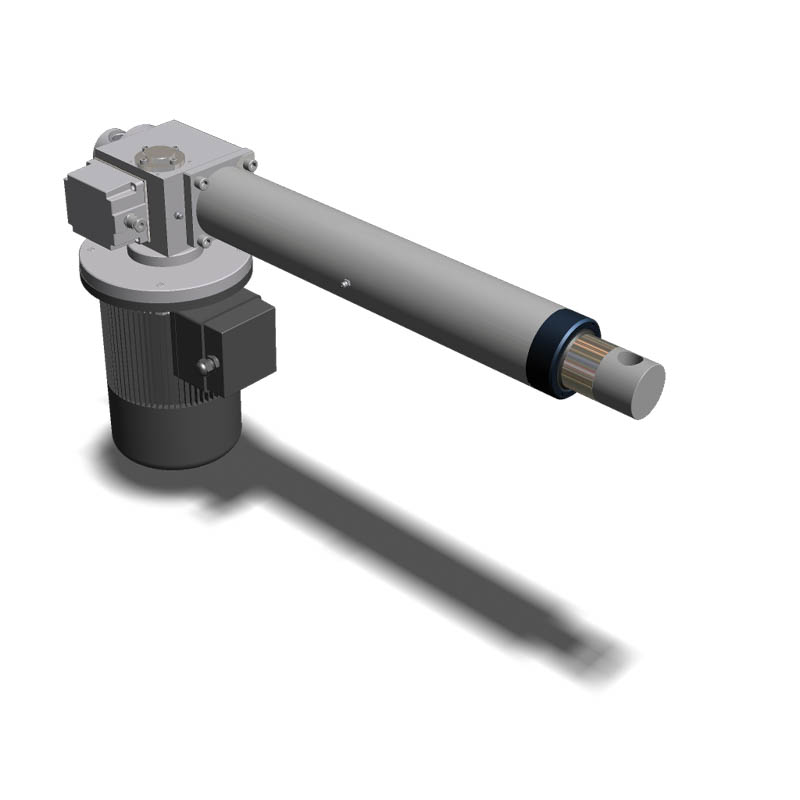

AC Electric Linear Actuator - ECV9092

MecVel Electric Linear Actuator

AC Electric Linear Actuator for forces up to 40000N

    -AC motor, flange B5
    -Worm gearbox
    -ACME lead screw or ballscrew (VRS)
    -Chrome plated steel push rod
    -Grease lubricated
    -IP 65, tested according to rule CEI EN 60529
    -Working temperature range -10degC to 60degC
    -Intermittent duty S3 30% (5 min) at 30degC
    -Limit switches, potentiometer, and encoder on request
    -Maximum force: 40000N
    -Maximum speed: 45 mm/s
MecVel Electric Linear Actuator
